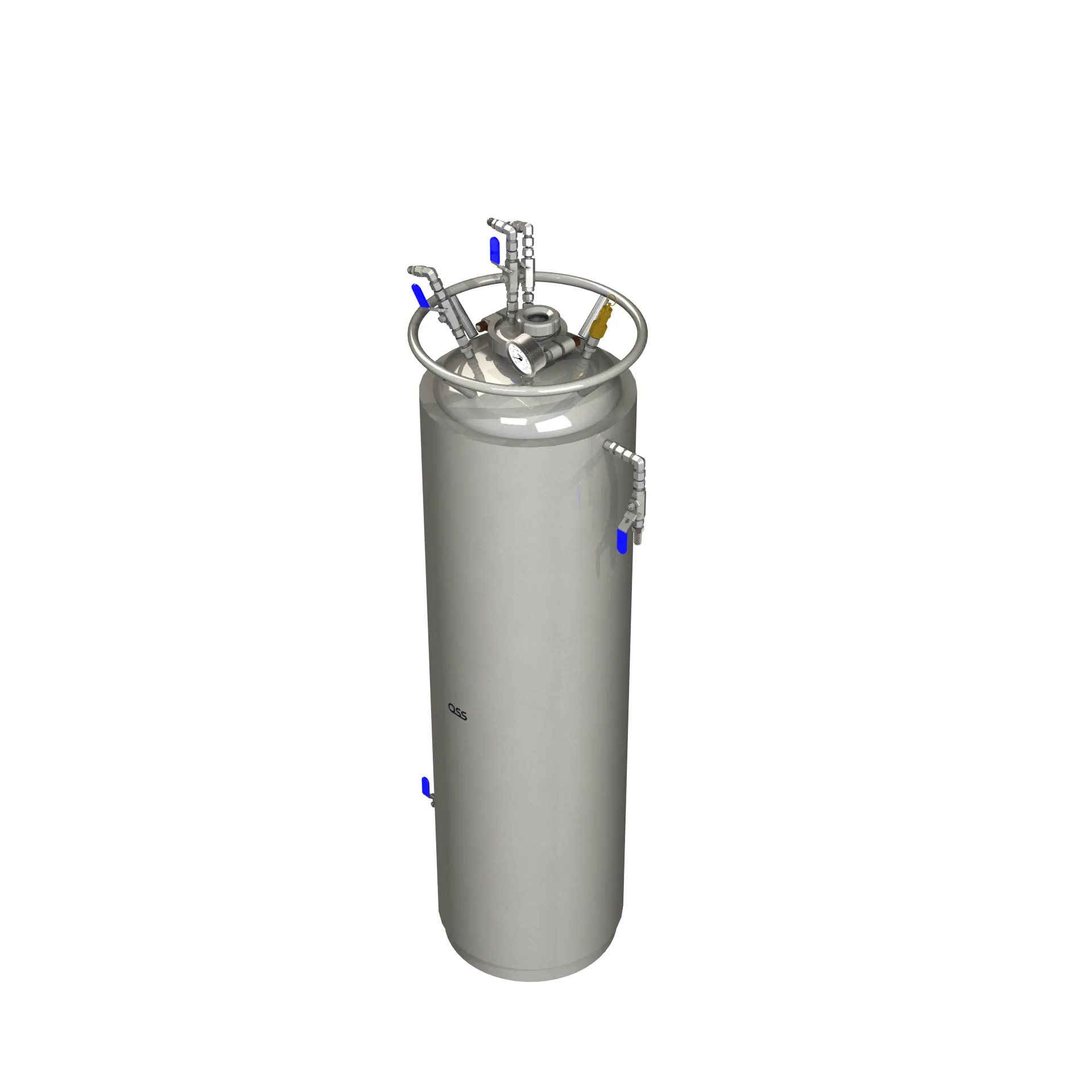

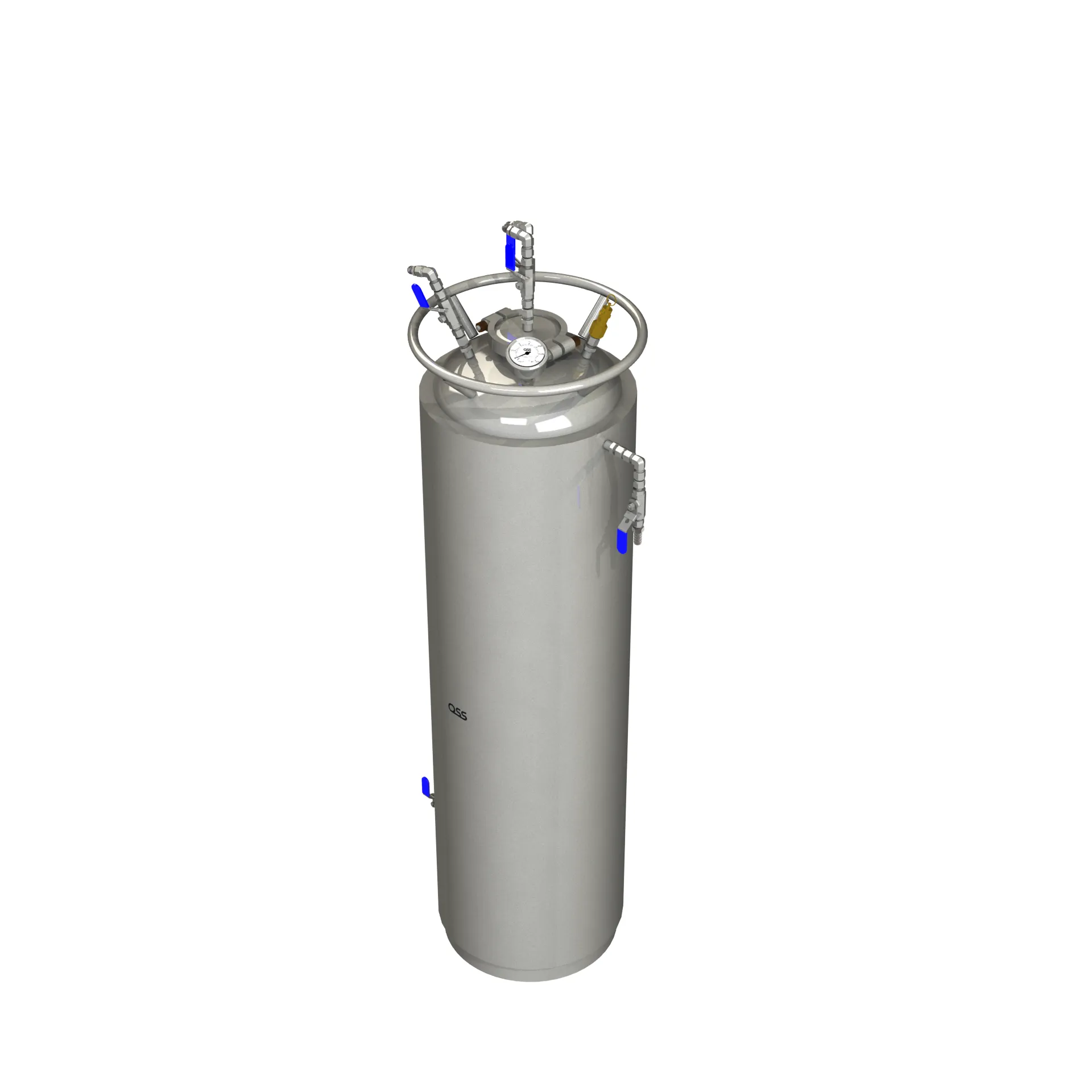

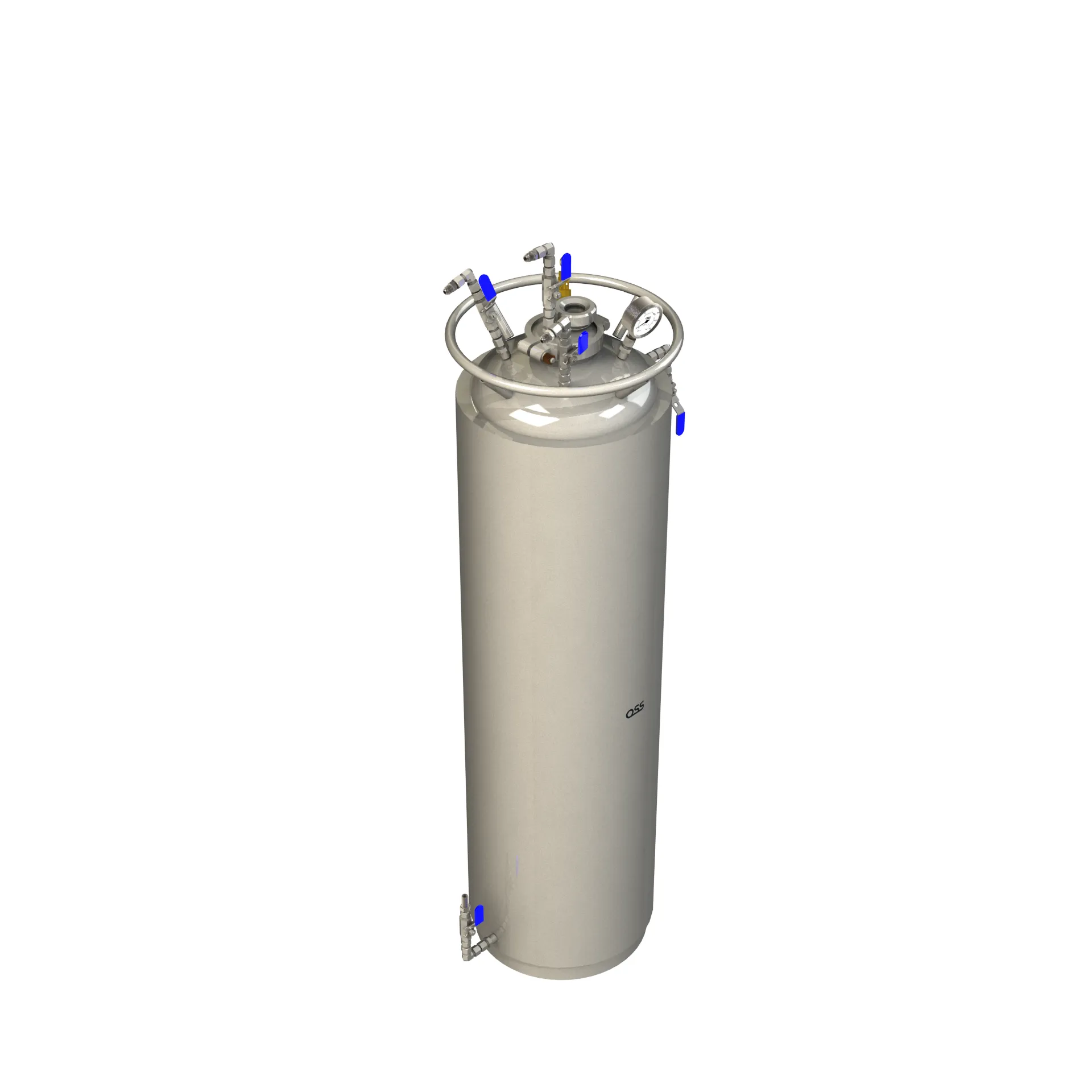

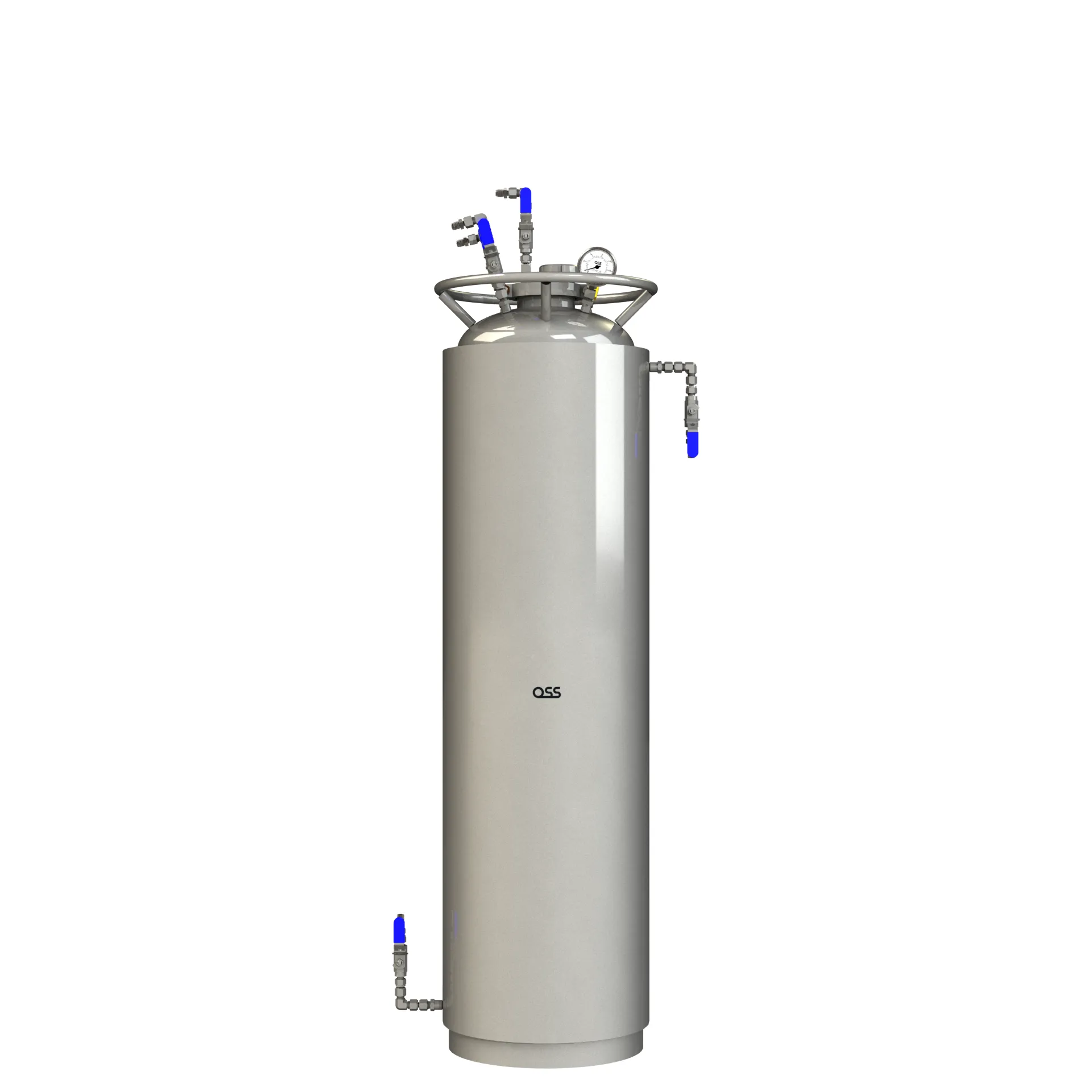

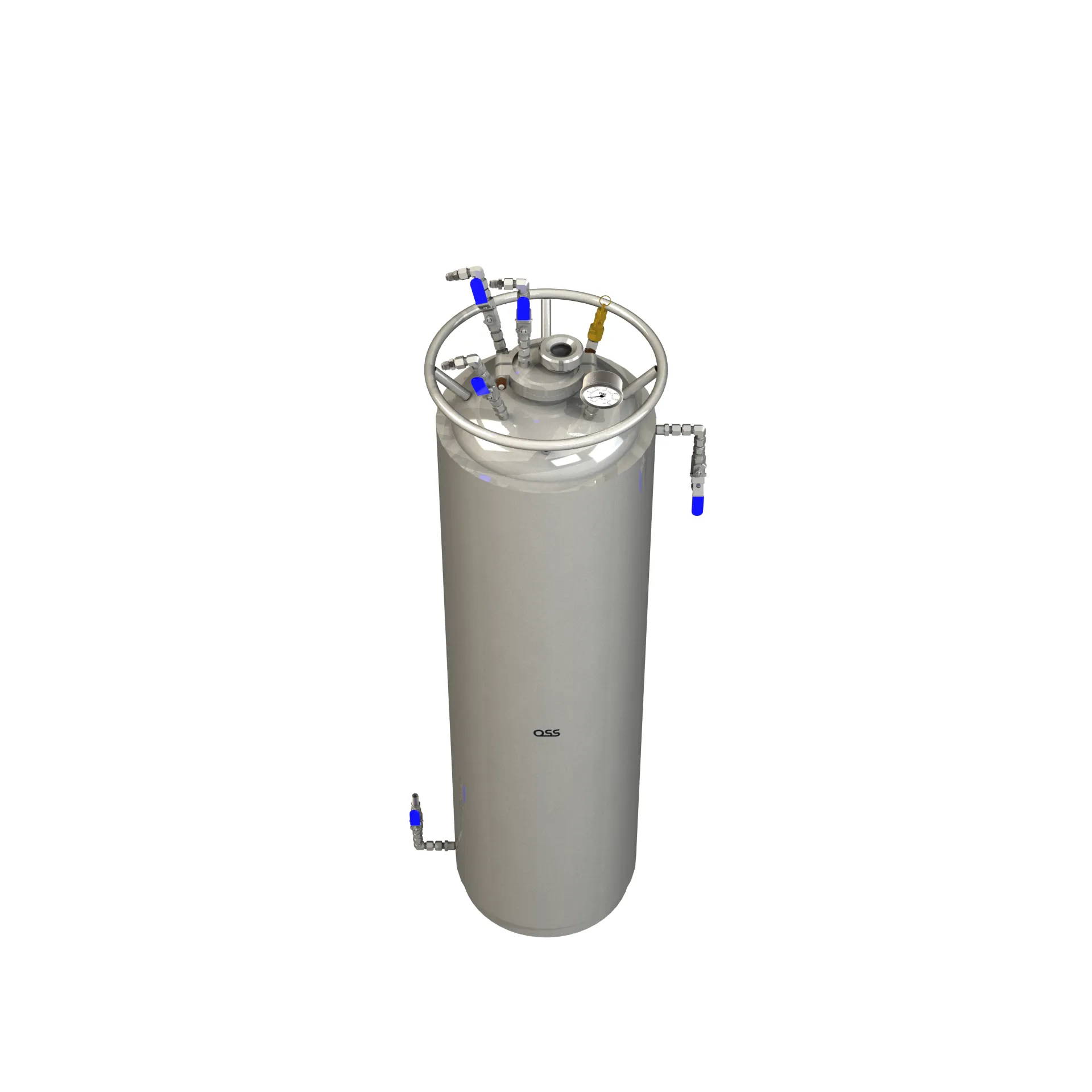

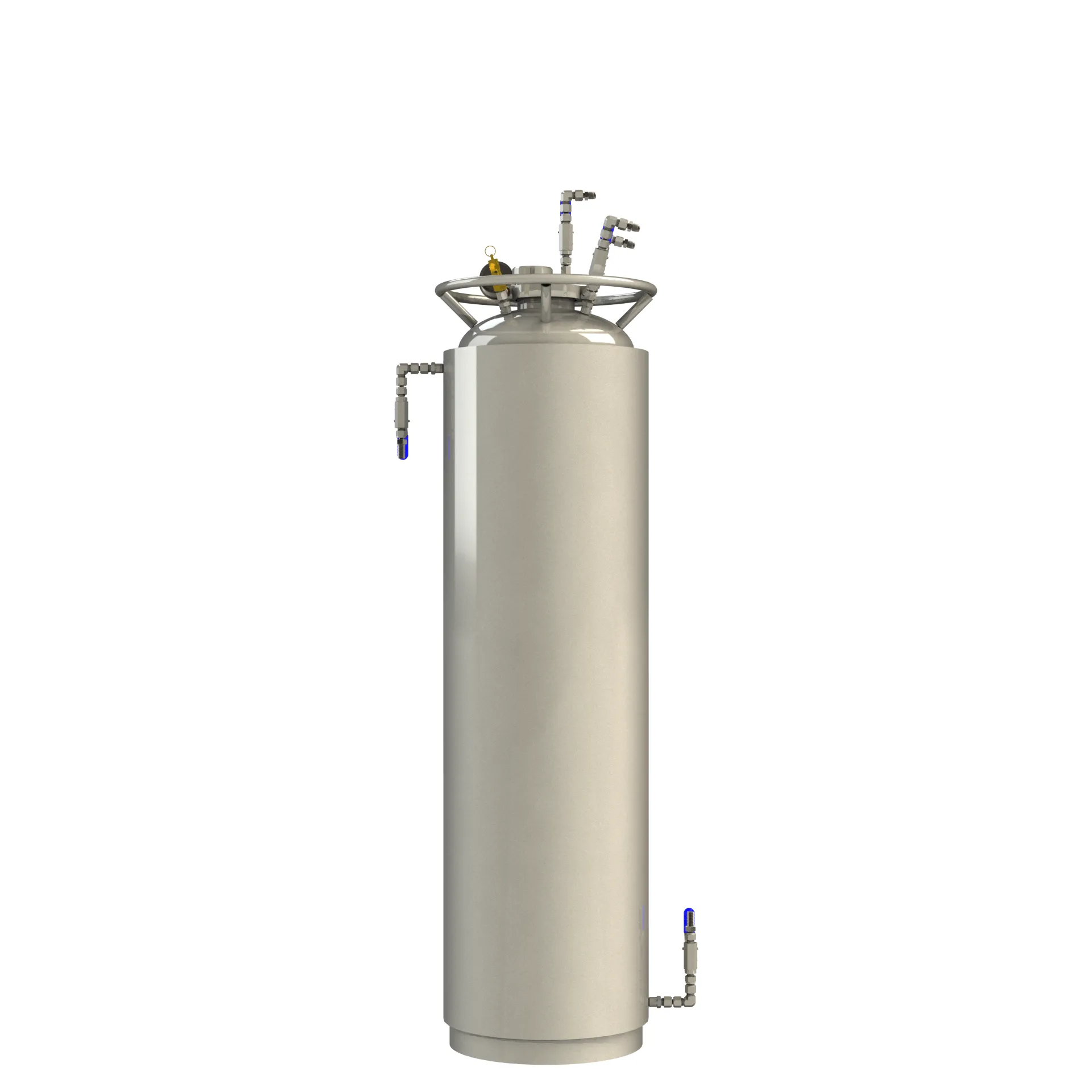

OSS Jacketed Solvent Tank - 100lb
Solvent storage vessel; ~100lb capacity
Fully Jacketed Solvent Tank
Comes Assembled & Pressure tested, saving you time and $$$!!
Features:
Compound Pressure Gauge - -30-150psi
Pressure Relief Valve - 125psi
3/8" JIC Connections
4" Center Opening
14" Safety Ring
Bottom Crush-Proof Ring
Jacketed Recirculation - 1/2" Hose Barb
Nylon Hose Clamps
Thread Tape
Optional Accessories:
25ft 1/2" Rubber Hosing for Recirculation

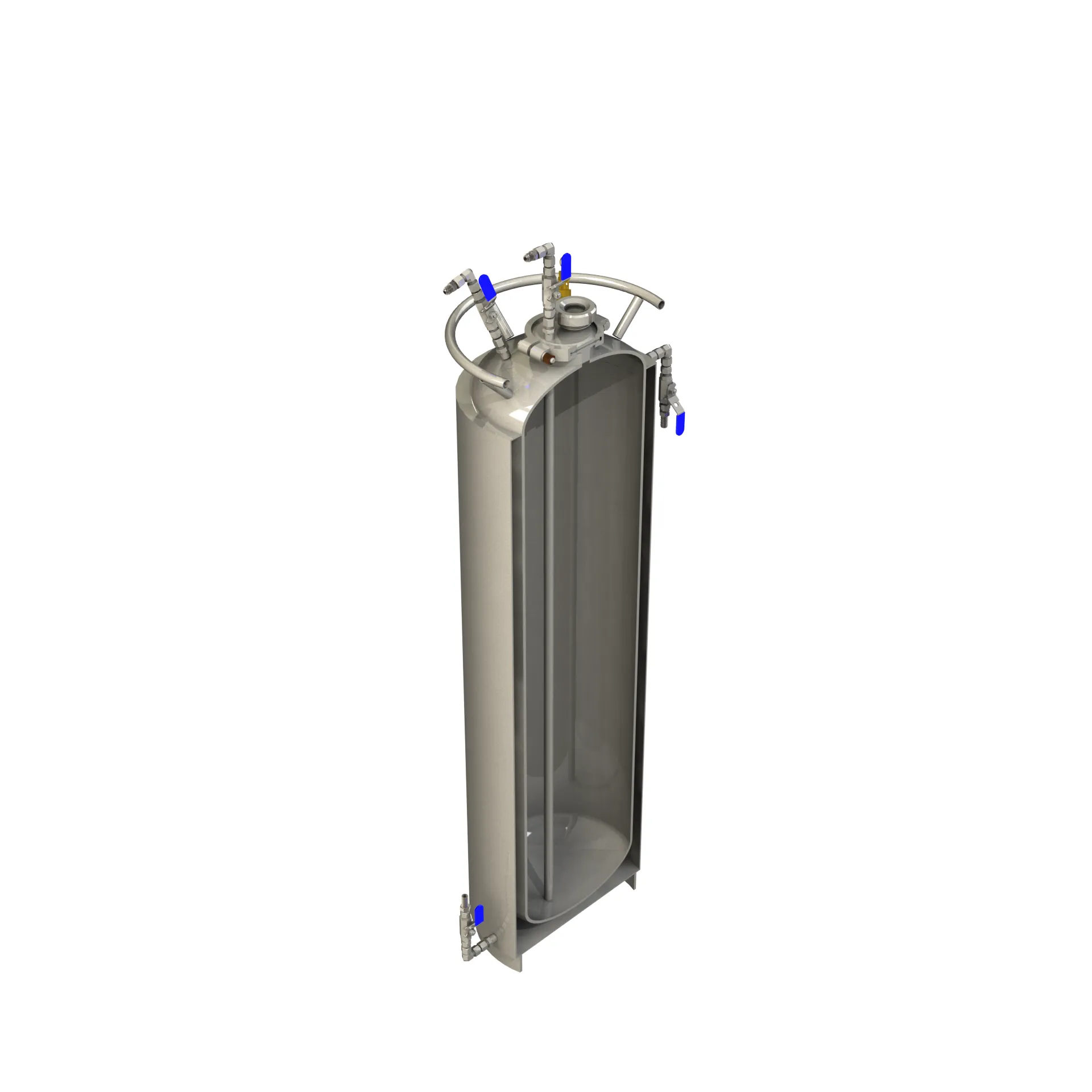

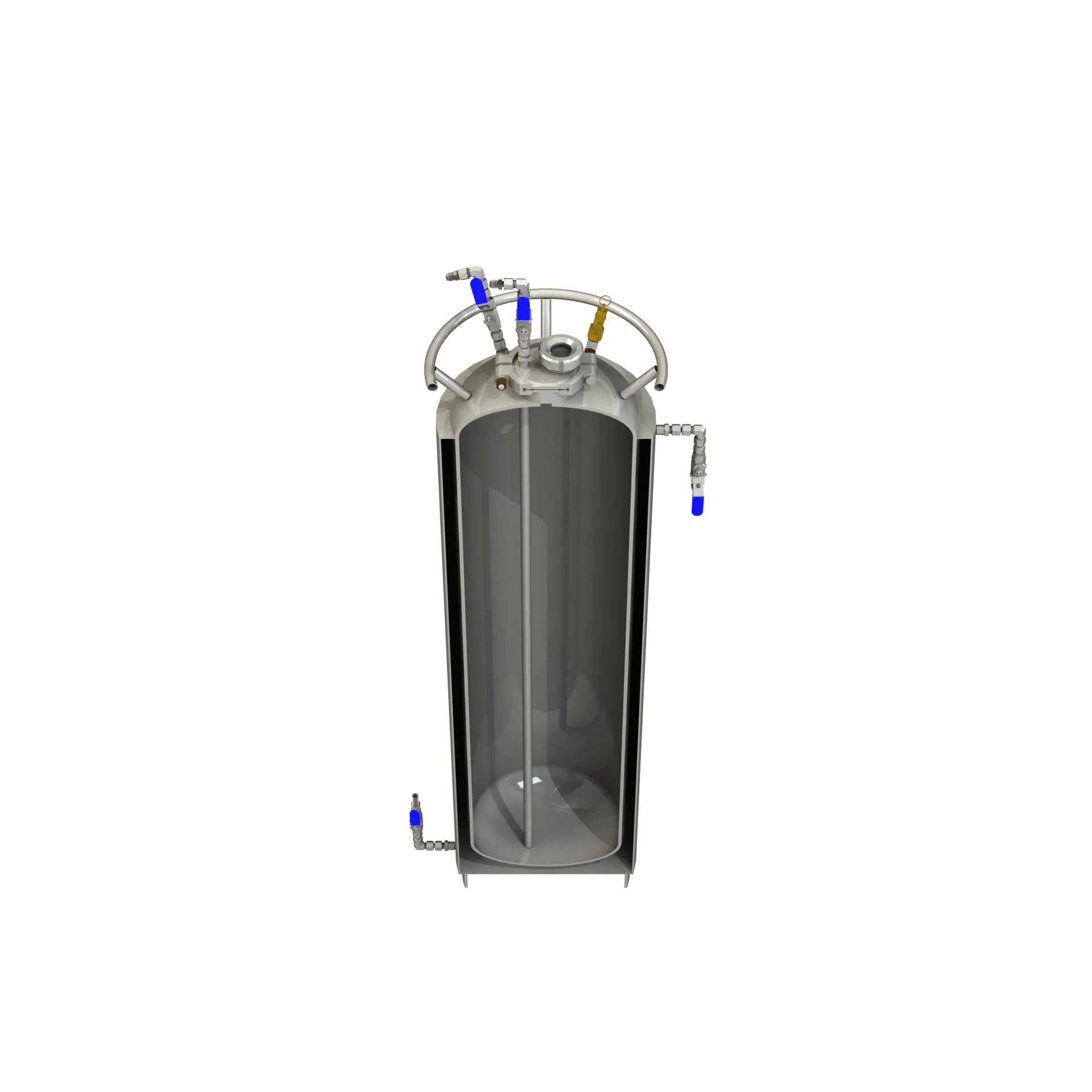

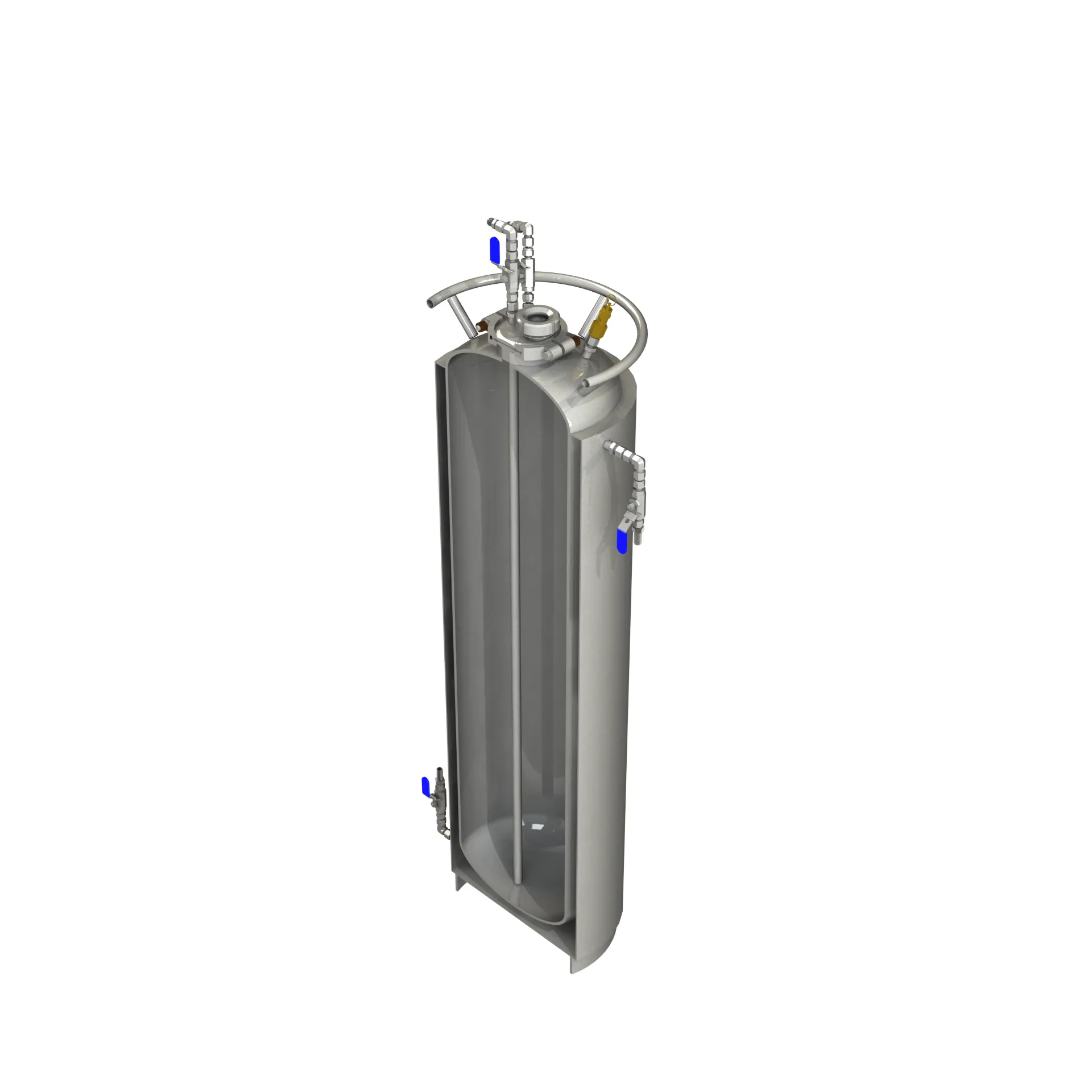

SECTION VIEW |

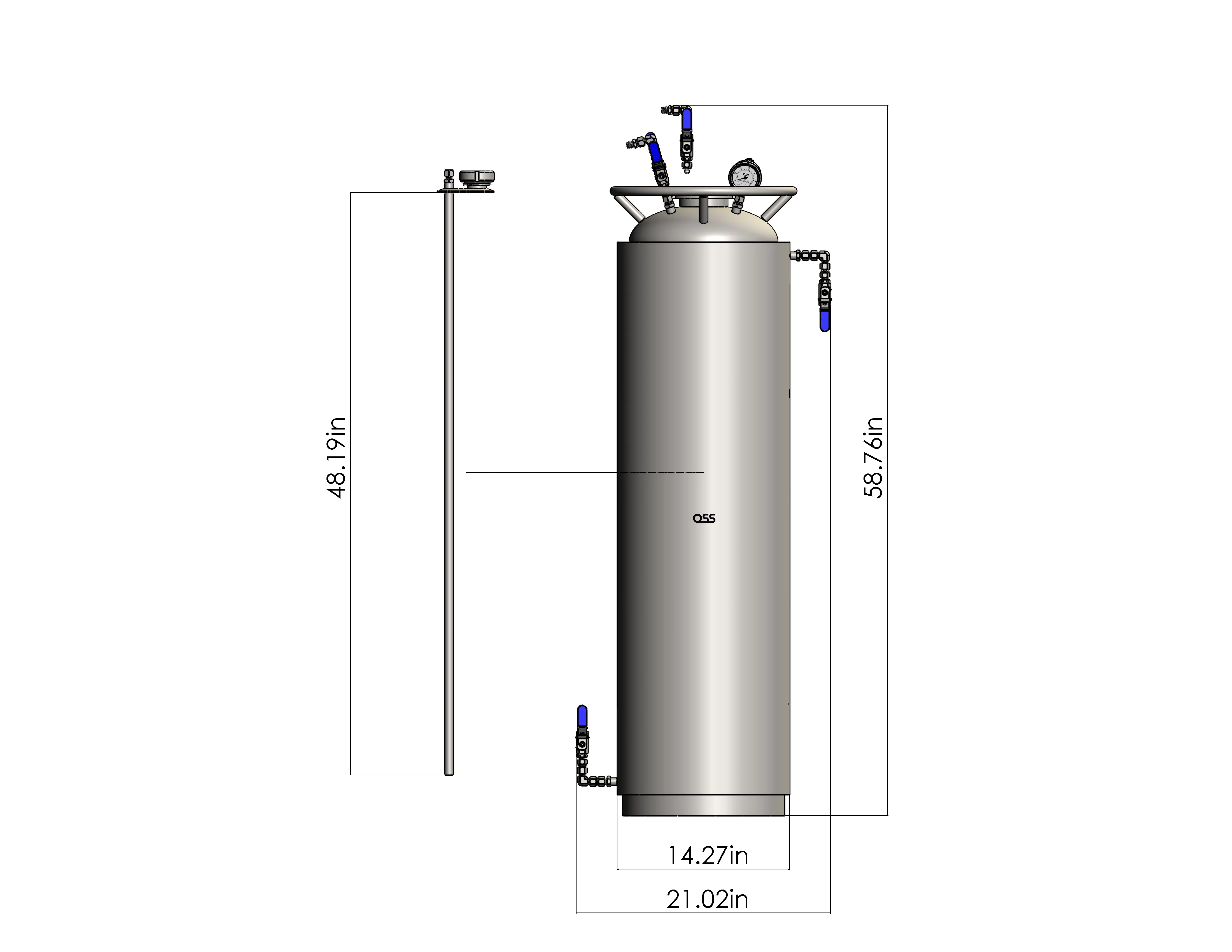

DIMENSIONS |
TANK VOLUME @ 80% CAPACITY |
|
80LBS 70/30 BUTANE/PROPANE |
| *Solvent storage should not exceed 80% total volume |
WALL THICKNESS |
| BODY - 6MM |
| JACKET - 3MM |
100LB JACKETED SOLVENT TANK OPTIONS |
BOTTOM MOUNT GAUGE - SIGHTGLASS DIPTUBE
|
BOTTOM MOUNT GAUGE - STANDARD DIPTUBE
|
BACK MOUNT GAUGE - SIGHTGLASS DIPTUBE |
BACK MOUNT GAUGE - STANDARD DIPTUBE |
REPLACEMENT AND ACCESSORY ITEMS |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
